Screenshots - Part 5

Simulation of Adsorption-Processes

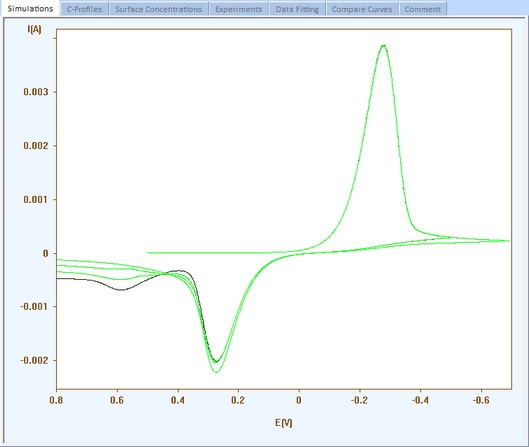

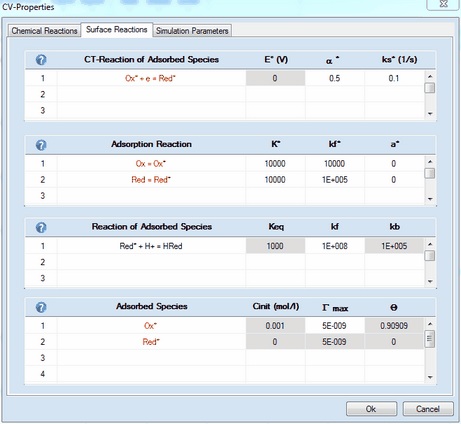

The Mechanism refers to a mechanism where an adsorbed species undergoes a follow-up reaction with a bulk species Simulated CVs using different rate constants for the follow-up reaction

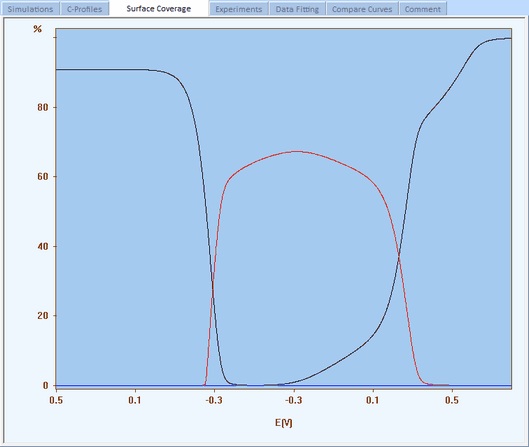

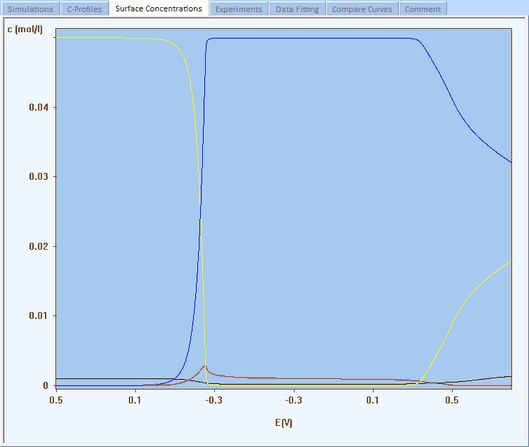

Simulated surface concentrations referring to the black CV Simulated surface coverage referring to the black CV
